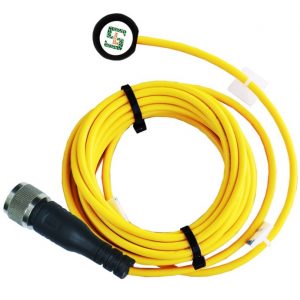

Module Temperature Sensor

The module temperature sensor is used by PV plant operators to know the temperature of the modules installed in the array. The module temperature sensor converts this reading into a voltage signal. This signal is sent back to the monitoring device. For the system operator, it is important to know the system performance. The module temperature sensor will help to enhance kWh performance by ensuring reliable access to all necessary data.

Specifications & Features

Supply Voltage: 12 to 28VDC

Accuracy: Up to ±0.3°C

Ingress Protection (IP): IP-65

Measuring Range: 0 to 100°C

  1. Housing / Enclosure: Poly Carbonate Watertight enclosure
  2. Sensor Type: Pt100Ω
